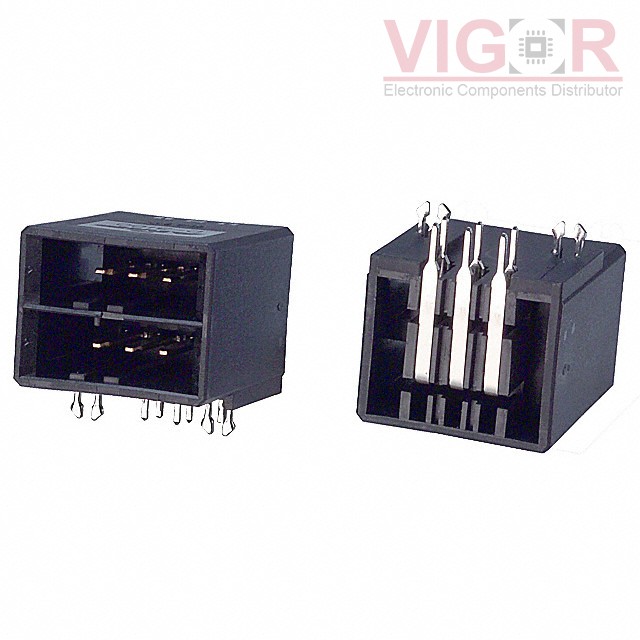

2-178137-2

Part No :: 2-178137-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 6POS 3.81MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-178137-2 PDF

Availability: 0 pieces

Unit Price: ~~$2.02877~~

Current price of 2-178137-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-178137-2 Specifications

Type	Description
Series:	Dynamic D-3100
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.150" (3.81mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.300" (7.62mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.131" (3.33mm)
Overall Contact Length:	-
Insulation Height:	0.668" (16.97mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
