| Type | Description |
|---|---|
| Series: | - |
| Package: | Tray |
| Part Status: | Active |

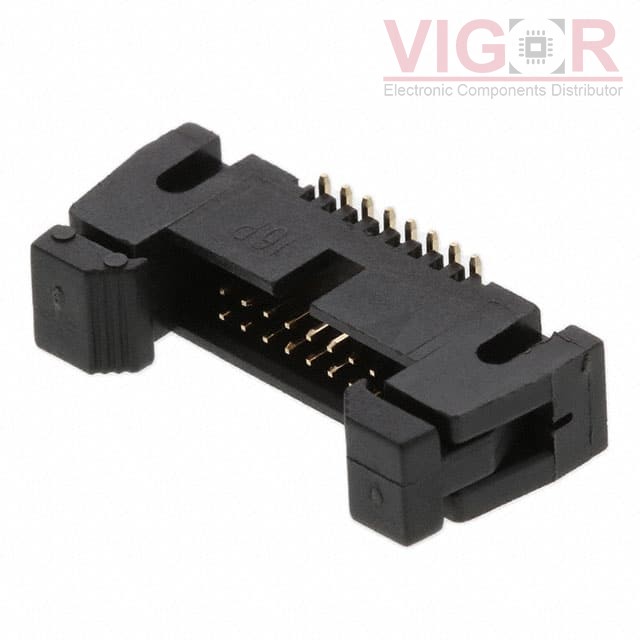

| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 16 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Latch Lock/Eject Hooks, Short |
| Contact Length - Mating: | - |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | - |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | - |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T |
| Features: | Keying Slot |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | - |
| Current Rating (Amps): | 1A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1980 |
Current price of 3210-16-003-12-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
