XG4A-1431

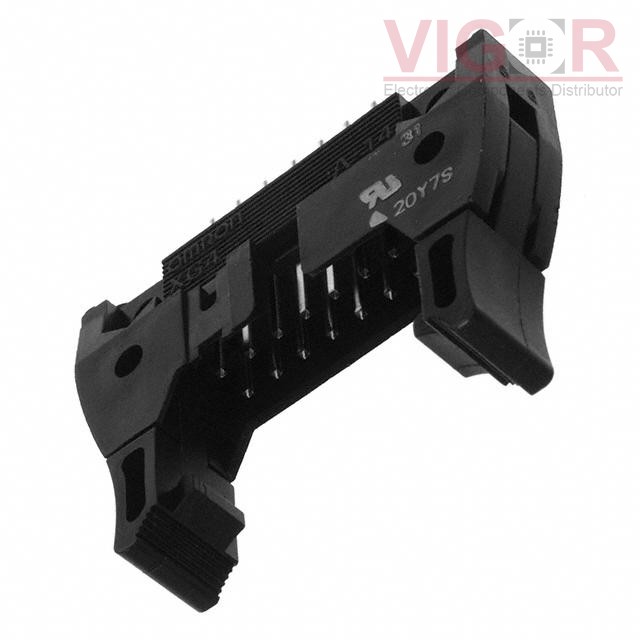

Product image
Product thumb
Part No :

XG4A-1431

Manufacturer
Omron Electronics Components
VIGOR # :

3081486

Description
CONN HEADER VERT 14POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
XG4A-1431 PDF
Country of origin
-
Date code
-
ads
XG4A-1431 Specifications
Type Description
Series:XG4
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.657" (16.70mm)
Insulation Height:0.669" (17.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:5.90µin (0.150µm)
Contact Finish - Post:Tin
Contact Material:Brass, Nickel
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:300V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 14625
Shipped from
HK warehouse
Expected Shipping Date
Oct 20 - Oct 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.4000 $1.40
80 $1.1400 $91.20
160 $1.0882 $174.12
560 $0.9069 $507.85
1040 $0.7773 $808.41
5040 $0.7485 $3 772.59

Current price of XG4A-1431 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

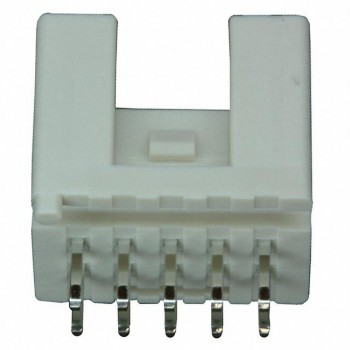

B10B-PUDSS-1(LF)(SN)

B10B-PUDSS-1(LF)(SN)

CONN HEADER VERT 10POS 2MM

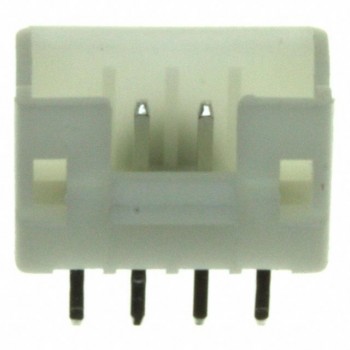

1735446-4

1735446-4

CONN HEADER VERT 4POS 2MM

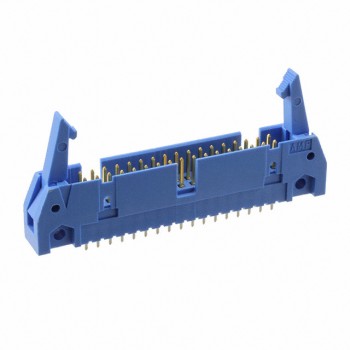

2-5499206-8
