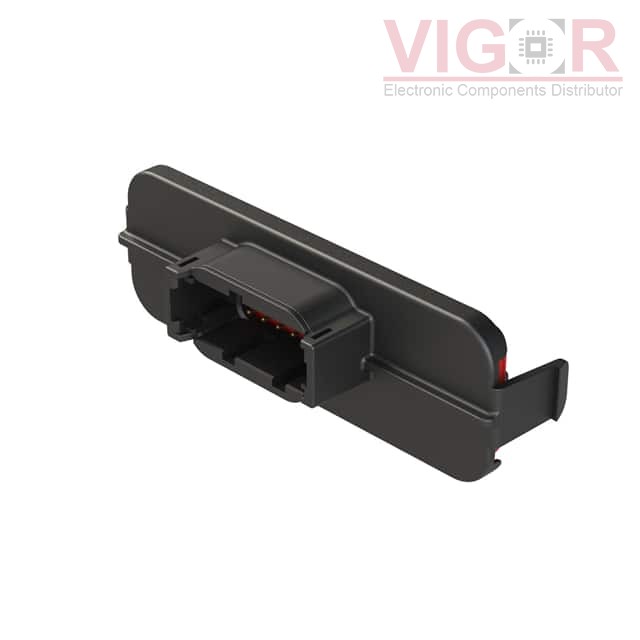

ATM13-12PB-GR01

Part No :: ATM13-12PB-GR01

Manufacturer: Tuchel / Amphenol

Description: CONN HEADER R/A 12POS 4.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: ATM13-12PB-GR01 PDF

Availability: 15 pieces

Unit Price: ~~$19.74000~~

Current price of ATM13-12PB-GR01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ATM13-12PB-GR01 Specifications

Type	Description
Series:	ARMORIPX™ ATM
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.250" (6.35mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Snap-In; Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	-
Insulation Height:	1.378" (35.00mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Mounting Flange, Sealed
Operating Temperature:	-55°C ~ 155°C
Ingress Protection:	IP69K
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	7.5A
Voltage Rating:	-
