SWR201-NRTN-S03-SM-BG

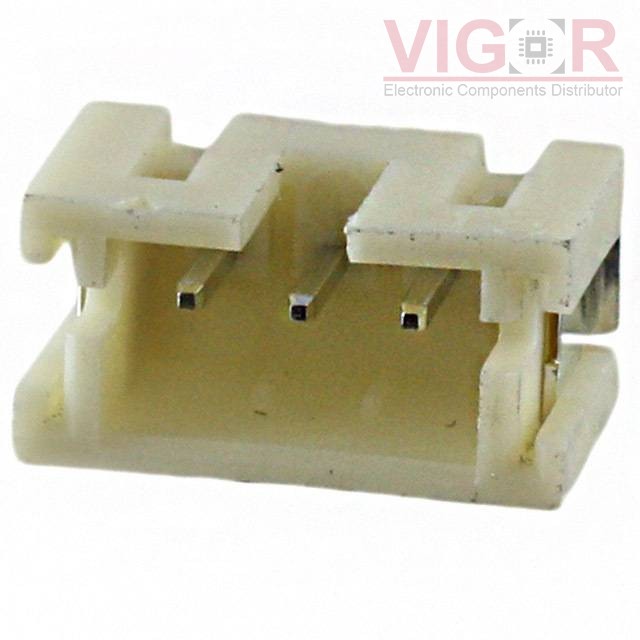

Image is for reference,
please contact us to get the real picture

Part No :: SWR201-NRTN-S03-SM-BG

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER SMD 3POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SWR201-NRTN-S03-SM-BG PDF

Availability: 0 pieces

Unit Price: ~~$0.49005~~

Current price of SWR201-NRTN-S03-SM-BG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWR201-NRTN-S03-SM-BG Specifications

Type	Description
Series:	SWR201
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.260" (6.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA46), Nylon 4/6
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A per Contact
Voltage Rating:	125V
