FX30B-5P-3.81DSA20

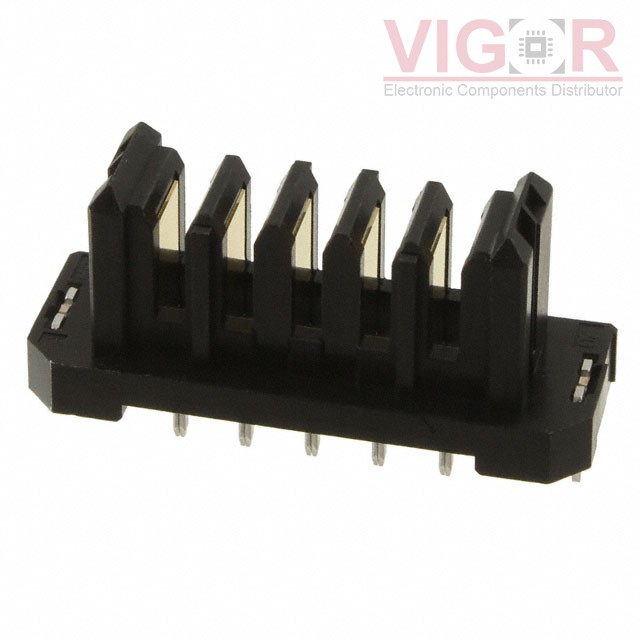

Product image
Product thumb
Part No :

FX30B-5P-3.81DSA20

Manufacturer
Hirose
VIGOR # :

3082257

Description
CONN HEADER VERT 5POS 3.81MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
FX30B-5P-3.81DSA20 PDF
Country of origin
-
Date code
-
ads
FX30B-5P-3.81DSA20 Specifications
Type Description
Series:FunctionMax™ FX30B
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.150" (3.81mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 2 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.559" (14.20mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):13A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 4
Shipped from
HK warehouse
Expected Shipping Date
Jun 03 - Jun 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.8500 $4.85
35 $4.2680 $149.38
105 $3.8800 $407.40

Current price of FX30B-5P-3.81DSA20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
0432550129

0432550129

CONN HEADER VERT 4POS 6.35MM

351-10-146-00-005101

351-10-146-00-005101

CONN HEADER VERT 46POS 2.54MM

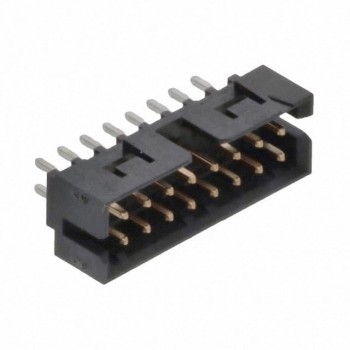

0878311619
