335-90-101-00-160000

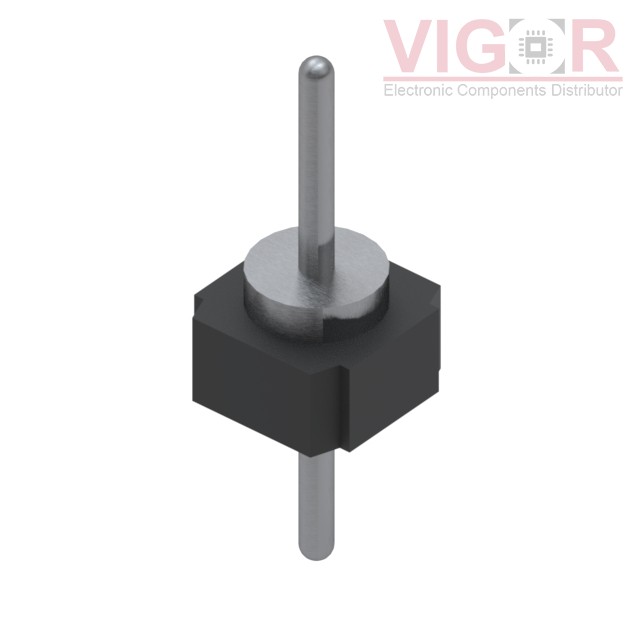

Product image
Product thumb
Part No :

335-90-101-00-160000

Manufacturer
Mill-Max
VIGOR # :

3083223

Description
CONN HEADER VERT 1POS
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
335-90-101-00-160000 PDF
Country of origin
-
Date code
-
ads
335-90-101-00-160000 Specifications
Type Description
Series:335
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:1
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.125" (3.18mm)
Contact Length - Post:0.104" (2.64mm)
Overall Contact Length:0.299" (7.60mm)
Insulation Height:0.050" (1.27mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:200.0µin (5.08µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:100V, 150VDC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $11.2032 $11.20
50 $11.1150 $555.75

Current price of 335-90-101-00-160000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
4-1969582-0

4-1969582-0

CONN HEADER VERT 40POS 2.5MM

FTMH-120-02-H-DV-P

FTMH-120-02-H-DV-P

CONN HEADER SMD 40POS 1MM

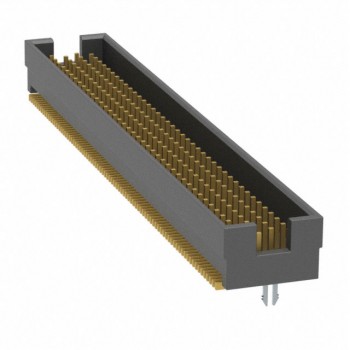

TOLC-140-02-L-Q-LC
