PBC35SBDN

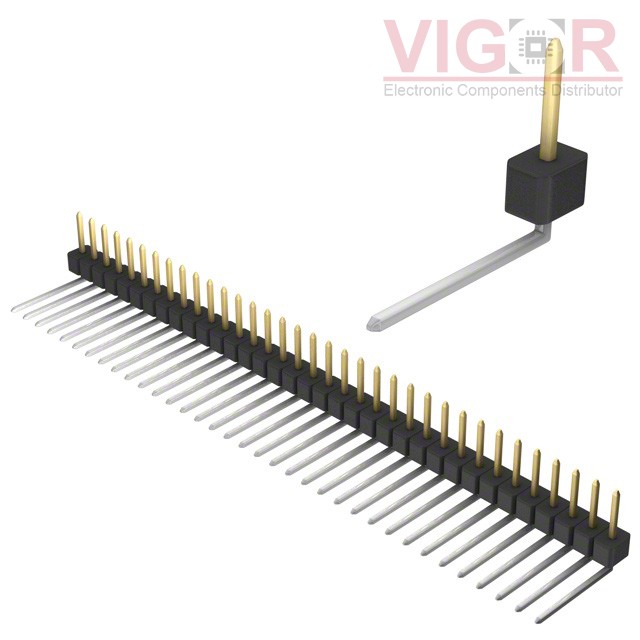

Image is for reference,
please contact us to get the real picture

Part No :: PBC35SBDN

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER R/A 35POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: PBC35SBDN PDF

Availability: 0 pieces

Unit Price: ~~$6.01000~~

Current price of PBC35SBDN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PBC35SBDN Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	35
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.400" (10.16mm)
Overall Contact Length:	-
Insulation Height:	0.140" (3.56mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-65°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
