0010845120

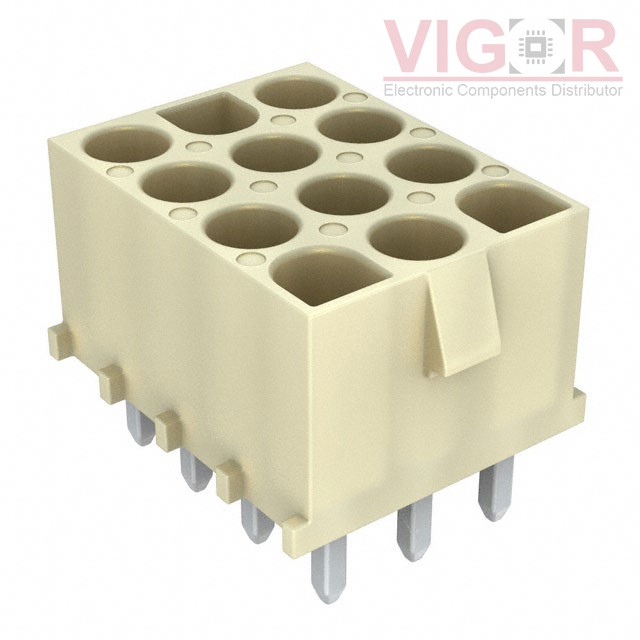

Product image
Product thumb
Part No :

0010845120

Manufacturer
Woodhead - Molex
VIGOR # :

3084398

Description
CONN HEADER VERT 12POS 6.35MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0010845120 PDF
Country of origin
-
Date code
-
ads
0010845120 Specifications
Type Description
Series:MLX 42002
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.250" (6.35mm)
Number of Positions:12
Number of Rows:3
Row Spacing - Mating:0.250" (6.35mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.169" (4.30mm)
Overall Contact Length:-
Insulation Height:0.550" (13.97mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:137.8µin (3.50µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 663
Shipped from
HK warehouse
Expected Shipping Date
Feb 02 - Feb 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.59 $1.59
10 $1.45 $14.47
100 $1.24 $124.01
500 $1.03 $516.69
1000 $0.89 $885.75
5000 $0.79 $3 926.85
10000 $0.77 $7 676.50

Current price of 0010845120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
