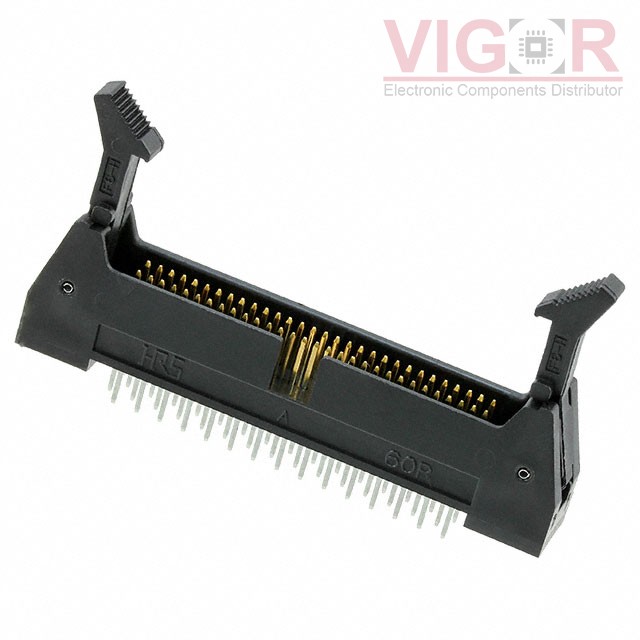

HIF6H-60PA-1.27DSA(71)

Part No :: HIF6H-60PA-1.27DSA(71)

Manufacturer: Hirose

Description: CONN HEADER VERT 60POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: HIF6H-60PA-1.27DSA(71) PDF

Availability: 0 pieces

Current price of HIF6H-60PA-1.27DSA(71) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HIF6H-60PA-1.27DSA(71) Specifications

Type	Description
Series:	HIF6
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	60
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.205" (5.21mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.563" (14.30mm)
Insulation Height:	0.606" (15.39mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	0.5A
Voltage Rating:	300V
