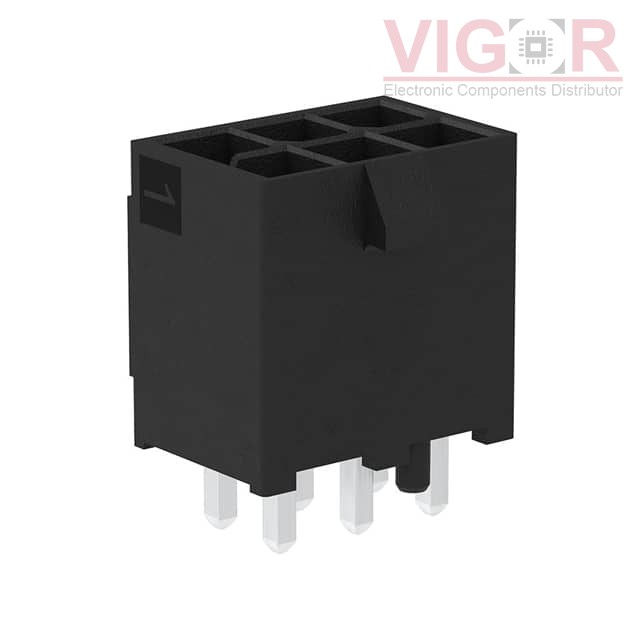

2125201008

Part No :: 2125201008

Manufacturer: Woodhead - Molex

Description: MINI-FIT MAX 8CKT HDR VERT

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2125201008 PDF

Availability: 0 pieces

Unit Price: ~~$2.66000~~

Current price of 2125201008 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2125201008 Specifications

Type	Description
Series:	Mini-Fit Max 212520
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.144" (3.66mm)
Overall Contact Length:	-
Insulation Height:	0.535" (13.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	20A per Contact
Voltage Rating:	600VAC/DC
