DF3-15P-2DSA(01)

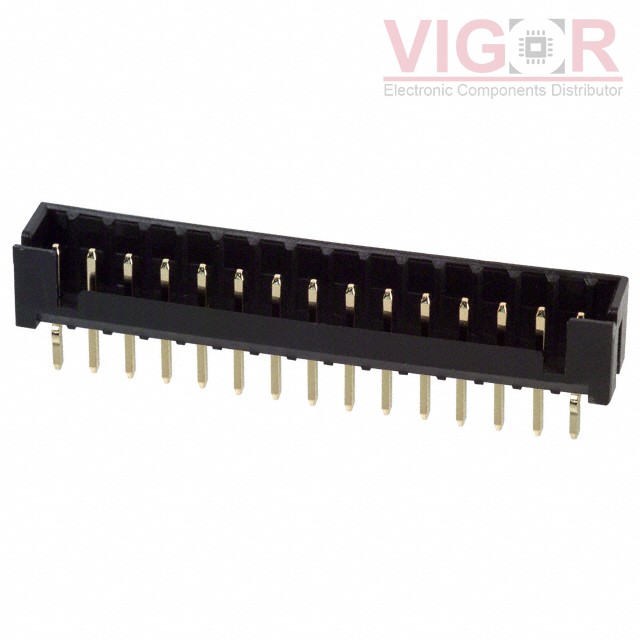

Image is for reference,
please contact us to get the real picture

Part No :: DF3-15P-2DSA(01)

Manufacturer: Hirose

Description: CONN HEADER VERT 15POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF3-15P-2DSA(01) PDF

Availability: 0 pieces

Unit Price: ~~$1.07100~~

Current price of DF3-15P-2DSA(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF3-15P-2DSA(01) Specifications

Type	Description
Series:	DF3
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	15
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.122" (3.10mm)
Contact Length - Post:	0.114" (2.90mm)
Overall Contact Length:	0.299" (7.60mm)
Insulation Height:	0.197" (5.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
