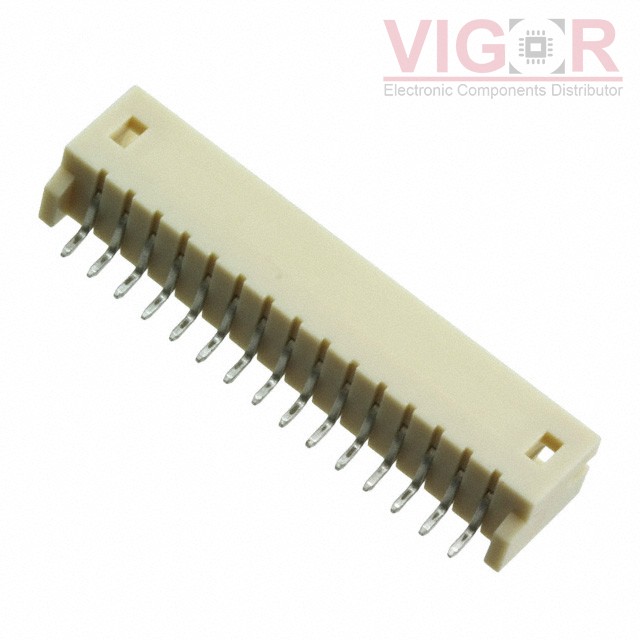

1-1775469-5

Product image
Product thumb
Part No :

1-1775469-5

Manufacturer
VIGOR # :

3086718

Description
CONN HEADER SMD R/A 15POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1-1775469-5 PDF
Country of origin
-
Date code
-
ads
1-1775469-5 Specifications
Type Description
Series:High Performance Interconnect (HPI)
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:-
Contact Length - Mating:0.139" (3.53mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.217" (5.51mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA9T), Nylon 9T
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Apr 20 - Apr 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.4000 $1.40
600 $0.8213 $492.80
1200 $0.7392 $887.05
1800 $0.6981 $1 256.65
3000 $0.6776 $2 032.80
6000 $0.6571 $3 942.42
15000 $0.6160 $9 240.15

Current price of 1-1775469-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
0874270642

0874270642

CONN HEADER VERT 6POS 4.2MM

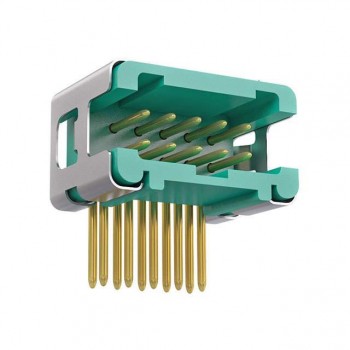

G125-MH11005L7P
