0015978162

0015978162

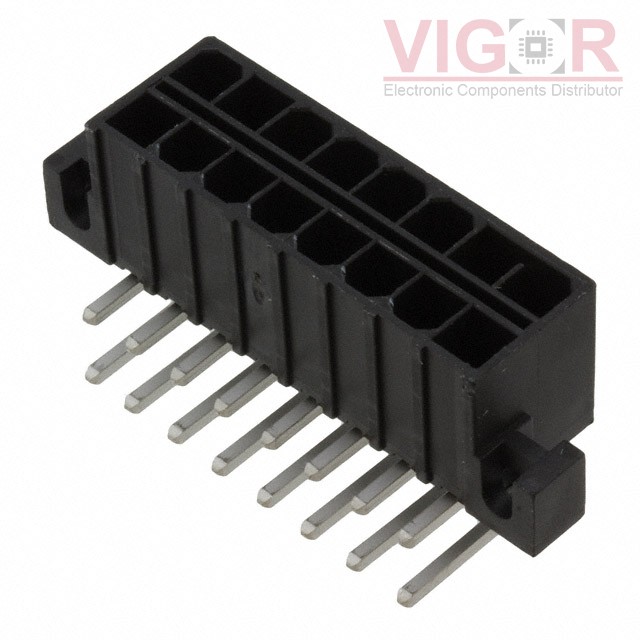

Image is for reference,
please contact us to get the real picture

Part No :

0015978162

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 16POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 24 - Oct 28 2025
DataSheet
0015978162 PDF
Availability
912 pieces
Unit Price
$3.19000

Current price of 0015978162 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0015978162 Specifications
Type Description
Series:Mini-Fit TPA 30070
Package:Bag
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.217" (5.51mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.461" (11.70mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
