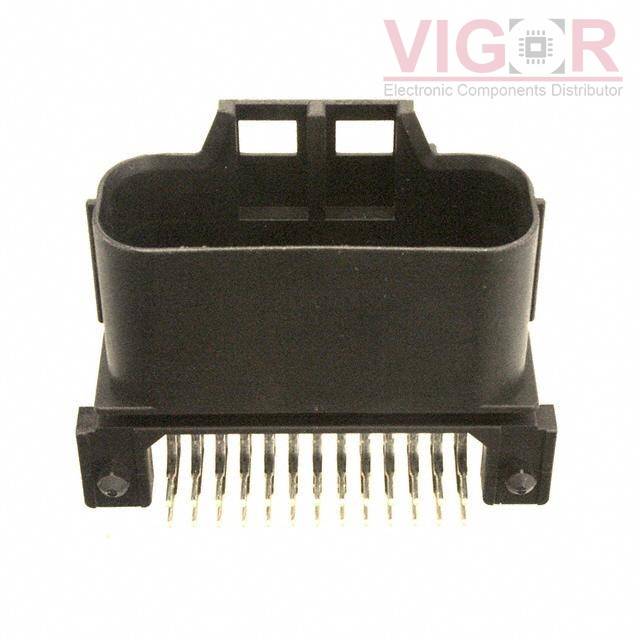

MX23A26NF1

Image is for reference,
please contact us to get the real picture

Part No :: MX23A26NF1

Manufacturer: JAE Electronics

Description: CONN HEADER R/A 26POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MX23A26NF1 PDF

Availability: 988 pieces

Unit Price: ~~$8.32000~~

Current price of MX23A26NF1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MX23A26NF1 Specifications

Type	Description
Series:	MX23A
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	0.173" (4.40mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.122" (3.10mm)
Overall Contact Length:	-
Insulation Height:	0.720" (18.30mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide
Operating Temperature:	-40°C ~ 125°C
Ingress Protection:	Waterproof
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
