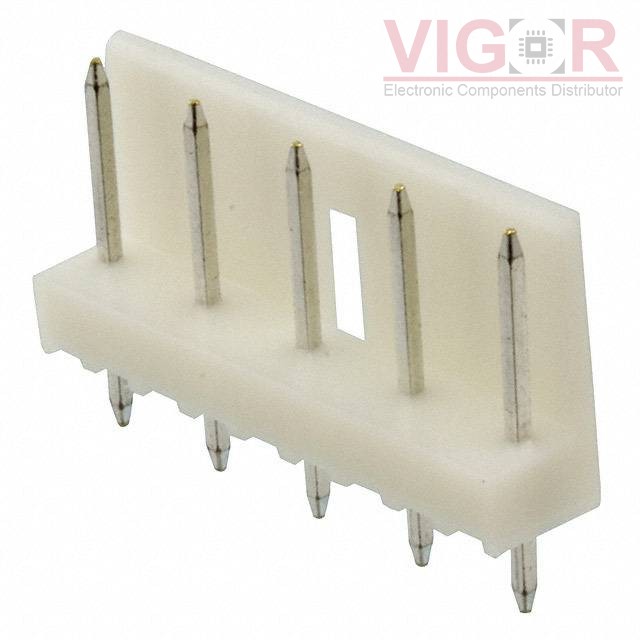

172106-5

Image is for reference,
please contact us to get the real picture

Part No :: 172106-5

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 5POS 5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 172106-5 PDF

Availability: 0 pieces

Unit Price: ~~$1.72000~~

Current price of 172106-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

172106-5 Specifications

Type	Description
Series:	EI
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.295" (7.49mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	0.551" (14.00mm)
Insulation Height:	0.409" (10.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	31.5µin (0.80µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	2A
Voltage Rating:	250VAC, 350VDC

Please confirm the specifications of the products when ordering.
