929700-06-03

Part No :: 929700-06-03

Manufacturer: 3M

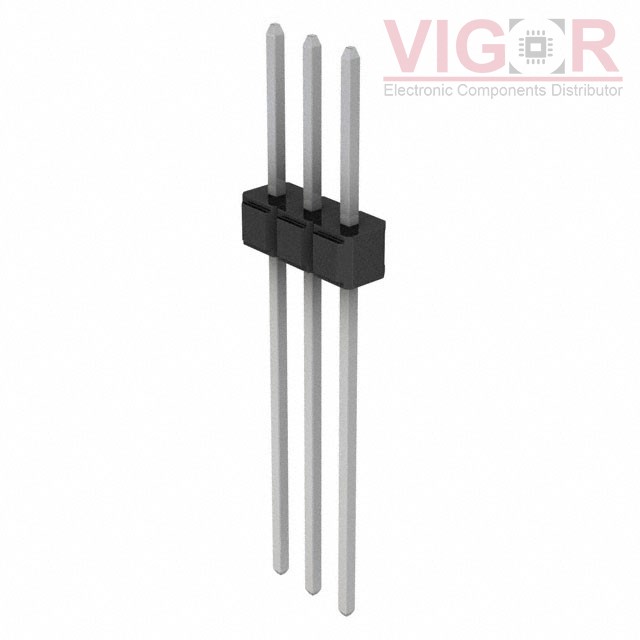

Description: CONN HEADER VERT 3POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 929700-06-03 PDF

Availability: 0 pieces

Current price of 929700-06-03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

929700-06-03 Specifications

Type	Description
Series:	929
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.318" (8.08mm)
Contact Length - Post:	0.710" (18.03mm)
Overall Contact Length:	1.128" (28.65mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.5A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
