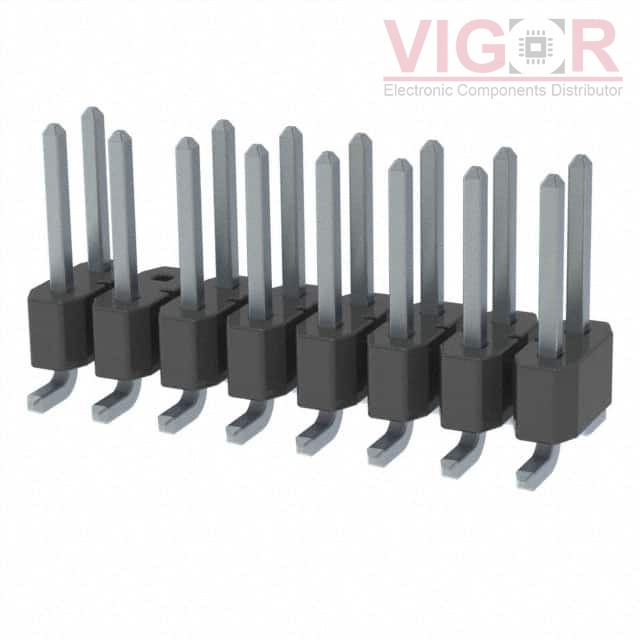

TSM-108-01-T-DV-014

Image is for reference,
please contact us to get the real picture

Part No :: TSM-108-01-T-DV-014

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD 16POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TSM-108-01-T-DV-014 PDF

Availability: 412 pieces

Unit Price: ~~$2.02000~~

Current price of TSM-108-01-T-DV-014 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM-108-01-T-DV-014 Specifications

Type	Description
Series:	TSM
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	15
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
