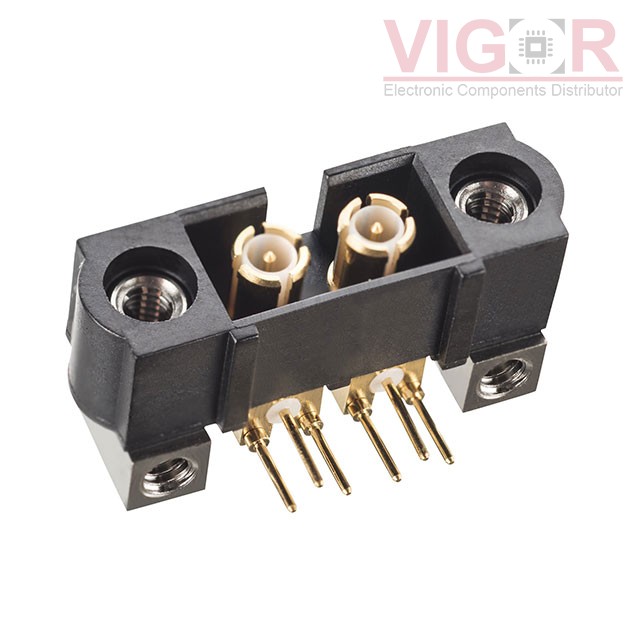

M80-MH313M5-02

M80-MH313M5-02

Image is for reference,
please contact us to get the real picture

Part No :

M80-MH313M5-02

Manufacturer
Harwin
Description
CONN HEADER R/A 2POS 4MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
DataSheet
M80-MH313M5-02 PDF
Availability
3 pieces
Unit Price
$34.64000

Current price of M80-MH313M5-02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M80-MH313M5-02 Specifications
Type Description
Series:Datamate Coax
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin, Coaxial
Pitch - Mating:0.157" (4.00mm)
Number of Positions:2 (Coax)
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Threaded
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Mating Flange, Mounting Flange
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 351-10-137-00-004101

351-10-137-00-004101

CONN HEADER VERT 37POS 2.54MM
HOT FTSH-110-01-FM-DH-A

FTSH-110-01-FM-DH-A

CONN HEADER SMD R/A 20POS 1.27MM

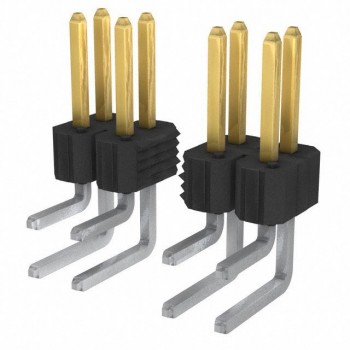

HOT 68021-120
