A3-16PA-2SV(71)

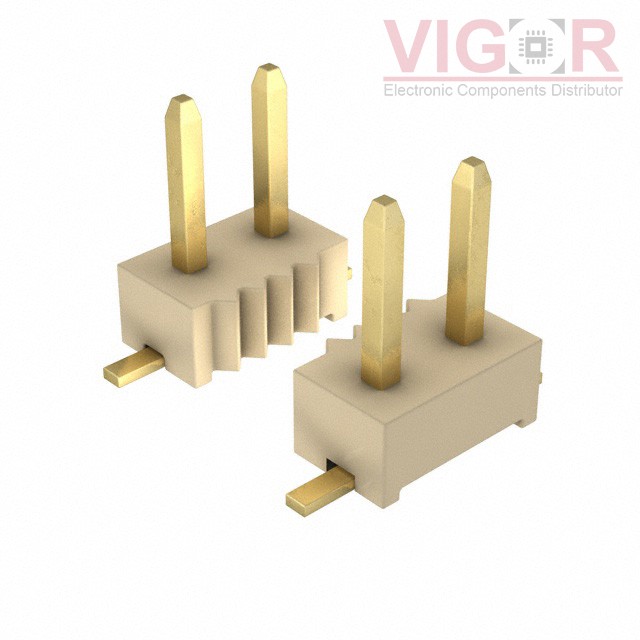

Image is for reference,
please contact us to get the real picture

Part No :: A3-16PA-2SV(71)

Manufacturer: Hirose

Description: CONN HEADER SMD 16POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Oct 09 - Oct 13 2025

DataSheet: A3-16PA-2SV(71) PDF

Availability: 1453 pieces

Unit Price: ~~$1.88000~~

Current price of A3-16PA-2SV(71) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A3-16PA-2SV(71) Specifications

Type	Description
Series:	A3
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.138" (3.50mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.071" (1.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyphenylene Sulfide (PPS)
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Brown
Current Rating (Amps):	1A
Voltage Rating:	200V

Please confirm the specifications of the products when ordering.
