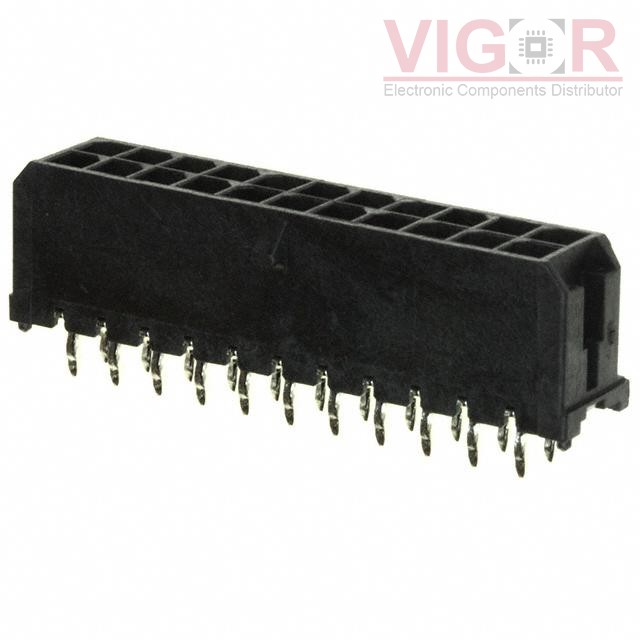

| Type | Description |
|---|---|
| Series: | Micro-Fit 3.0 43045 |
| Package: | Tray |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.118" (3.00mm) |
| Number of Positions: | 22 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.118" (3.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Locking Ramp |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.125" (3.18mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.390" (9.91mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Features: | Board Guide |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 8A |
| Voltage Rating: | 600V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 576 | ||
| 1152 |
Current price of 0430452212 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
