| Type | Description |
|---|---|
| Series: | AMPMODU MTE |
| Package: | Tube |
| Part Status: | Active |

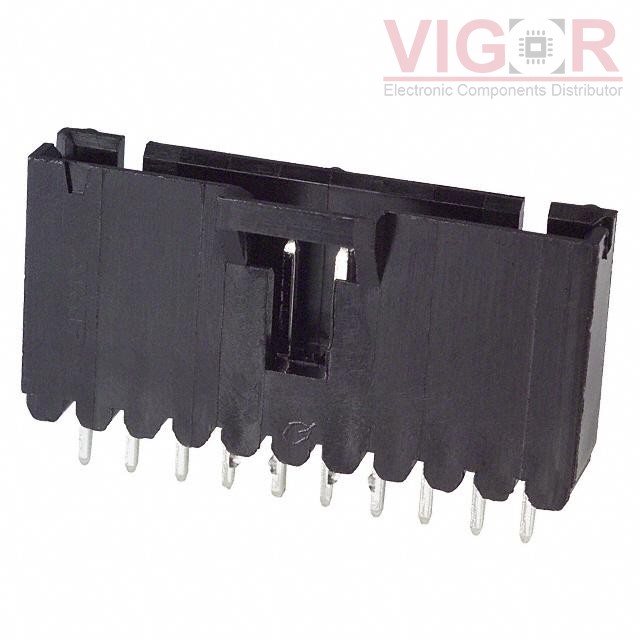

| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 10 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Press-Fit, Solder |
| Fastening Type: | Latch Holder |
| Contact Length - Mating: | 0.230" (5.84mm) |
| Contact Length - Post: | 0.130" (3.30mm) |
| Overall Contact Length: | 0.545" (13.84mm) |
| Insulation Height: | 0.535" (13.60mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin-Lead |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Material: | Brass |
| Insulation Material: | Thermoplastic |
| Features: | Keying Slot |
| Operating Temperature: | -65°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 3A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 1368 |
Current price of 103669-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
