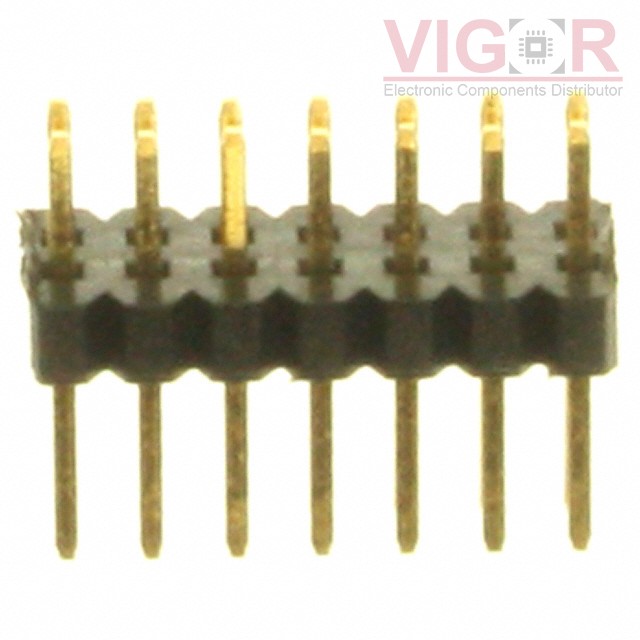

SMH100-LPSE-D07-ST-BK

Product image
Product thumb
Part No :

SMH100-LPSE-D07-ST-BK

Manufacturer
Sullins Connector Solutions
VIGOR # :

3094327

Description
CONN HEADER VERT 14POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
SMH100-LPSE-D07-ST-BK PDF
Country of origin
-
Date code
-
ads
SMH100-LPSE-D07-ST-BK Specifications
Type Description
Series:SMH
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.039" (1.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.071" (1.80mm)
Contact Length - Post:0.098" (2.50mm)
Overall Contact Length:0.209" (5.30mm)
Insulation Height:0.039" (1.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 624
Shipped from
HK warehouse
Expected Shipping Date
Jan 03 - Jan 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.82 $2.82
10 $2.70 $27.04
100 $2.25 $225.36
500 $1.92 $957.78
1000 $1.63 $1 633.86
5000 $1.63 $8 138.00

Current price of SMH100-LPSE-D07-ST-BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
68797-203H

68797-203H

CONN HEADER VERT 3POS 2.54MM

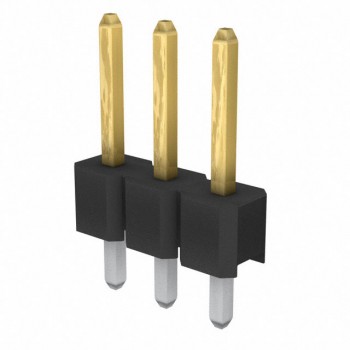

861400031YO2319LF

861400031YO2319LF

CONN HEADER VERT 3POS 2.54MM

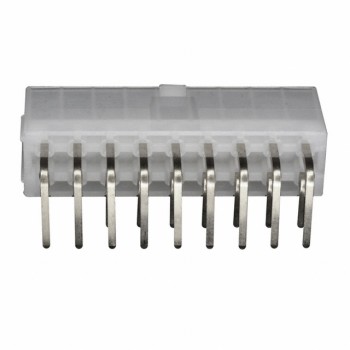

0039301181
