10075025-G01-12ALF

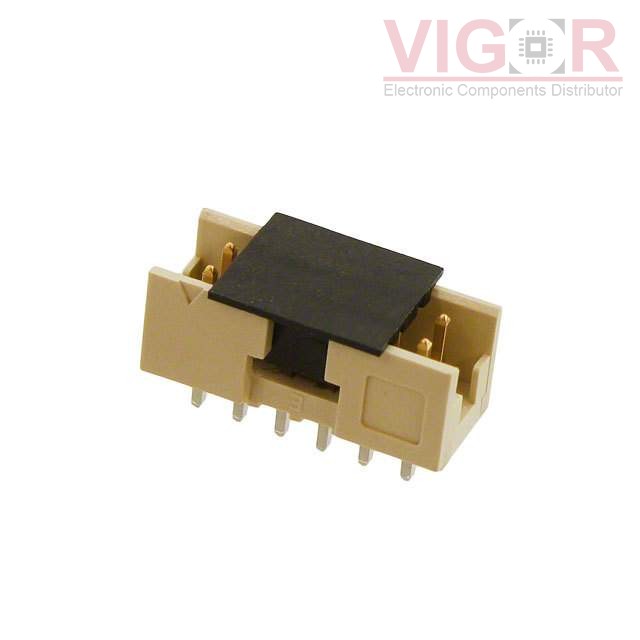

Image is for reference,
please contact us to get the real picture

Part No :: 10075025-G01-12ALF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 12POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 10075025-G01-12ALF PDF

Availability: 0 pieces

Unit Price: ~~$1.30000~~

Current price of 10075025-G01-12ALF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10075025-G01-12ALF Specifications

Type	Description
Series:	Minitek® 2.00mm
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.157" (4.00mm)
Contact Length - Post:	0.079" (2.00mm)
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Keying Slot, Pick and Place
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	2A (AC/DC)
Voltage Rating:	200V (AC/DC)

Please confirm the specifications of the products when ordering.
