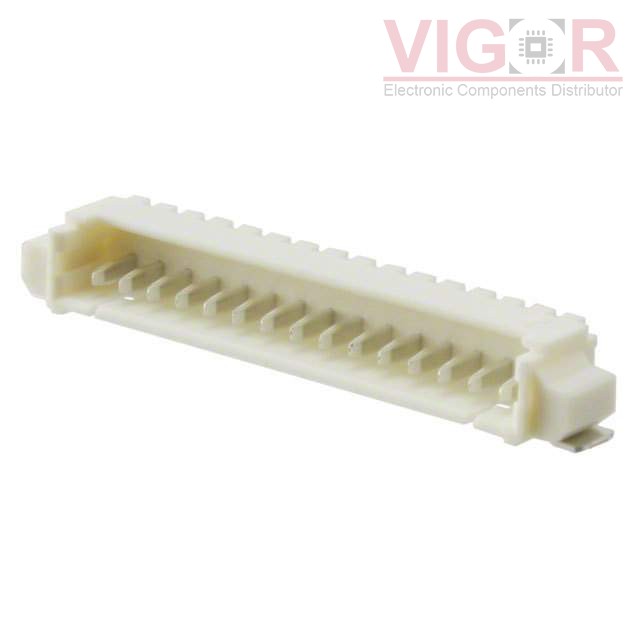

Image is for reference,
please contact us to get the real picture

Part No :

0532611571

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 15POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 14 - Oct 18 2025
DataSheet
0532611571 PDF
Availability
349 pieces
Unit Price
$1.25000

Current price of 0532611571 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0532611571 Specifications
Type Description
Series:PicoBlade 53261
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.134" (3.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
