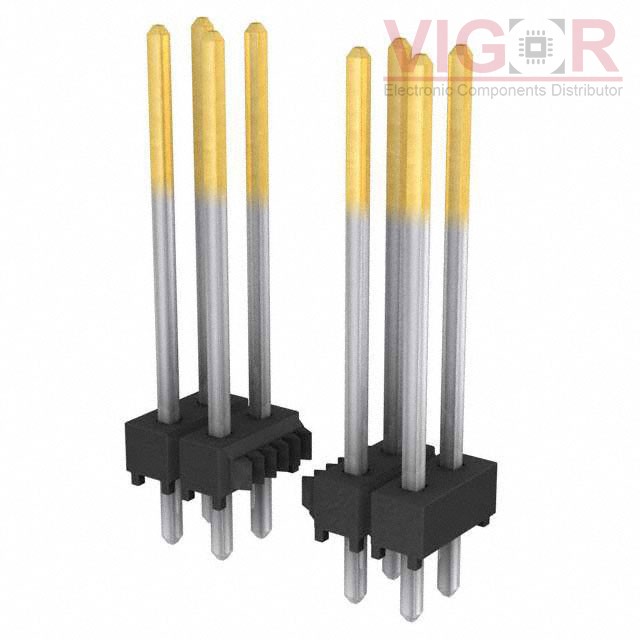

TSW-140-17-L-D

Part No :: TSW-140-17-L-D

Manufacturer: Samtec, Inc.

VIGOR # :: 3097380

Description: CONN HEADER VERT 80POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TSW-140-17-L-D PDF

Country of origin: -

Date code: -

TSW-140-17-L-D Specifications

Type	Description
Series:	TSW
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	80
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.620" (15.75mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.830" (21.08mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
