SHTSHSM-503-D-02-T-V-LF

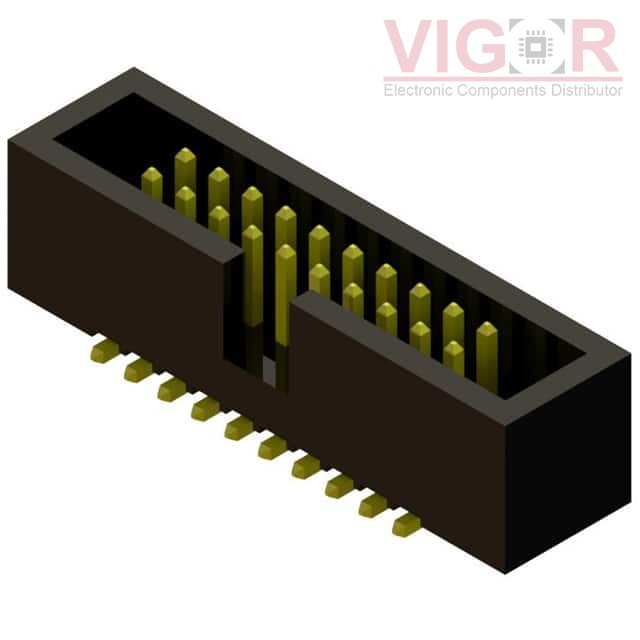

Image is for reference,
please contact us to get the real picture

Part No :: SHTSHSM-503-D-02-T-V-LF

Manufacturer: Major League Electronics

Description: SHROUDED SMT HEADER

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SHTSHSM-503-D-02-T-V-LF PDF

Availability: 54 pieces

Unit Price: ~~$0.93593~~

Current price of SHTSHSM-503-D-02-T-V-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SHTSHSM-503-D-02-T-V-LF Specifications

Type	Description
Series:	SHTSHSM-5
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.122" (3.10mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.193" (4.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-
