ZSS-103-07-S-D-1065

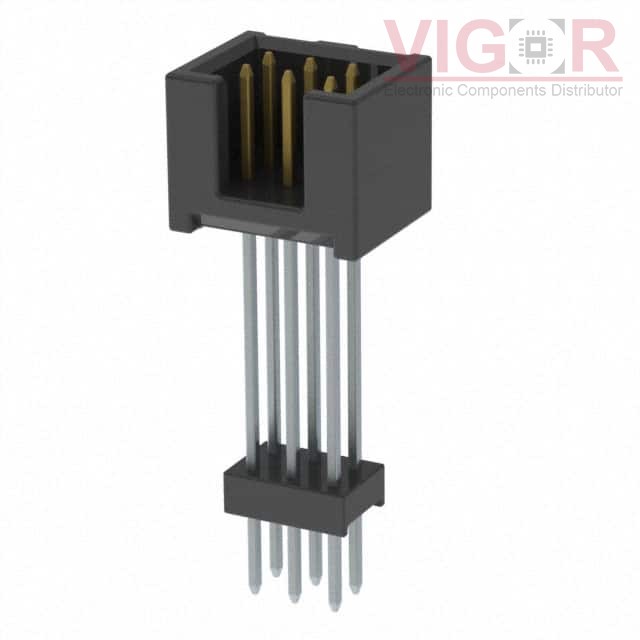

Image is for reference,
please contact us to get the real picture

Part No :: ZSS-103-07-S-D-1065

Manufacturer: Samtec, Inc.

Description: CONN HDR .100" 6POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: ZSS-103-07-S-D-1065 PDF

Availability: 133 pieces

Unit Price: ~~$5.08000~~

Current price of ZSS-103-07-S-D-1065 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZSS-103-07-S-D-1065 Specifications

Type	Description
Series:	Flex Stack, ZSS
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Elevated
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.250" (6.35mm)
Contact Length - Post:	0.165" (4.19mm)
Overall Contact Length:	1.230" (31.24mm)
Insulation Height:	1.065" (27.05mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyester, Glass Filled
Features:	Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
