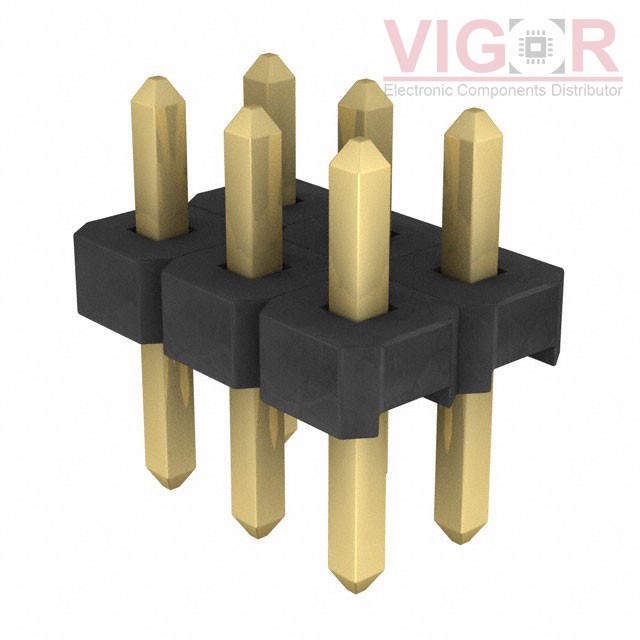

TLW-103-06-G-D

Part No :: TLW-103-06-G-D

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 6POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TLW-103-06-G-D PDF

Availability: 16 pieces

Unit Price: ~~$1.30000~~

Current price of TLW-103-06-G-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLW-103-06-G-D Specifications

Type	Description
Series:	Flex Stack, TLW
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.105" (2.67mm)
Contact Length - Post:	0.135" (3.43mm)
Overall Contact Length:	0.300" (7.62mm)
Insulation Height:	0.060" (1.52mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	5.2A per Contact
Voltage Rating:	-
