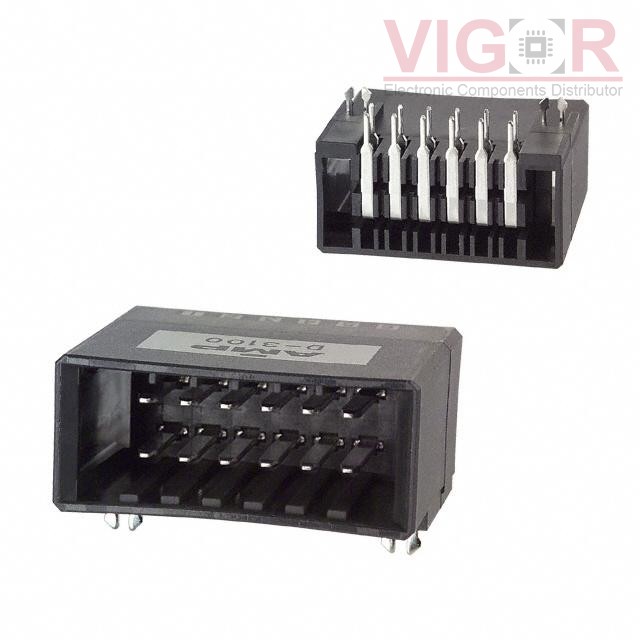

| Type | Description |
|---|---|
| Series: | Dynamic D-3100 |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Tab |
| Pitch - Mating: | 0.150" (3.81mm) |
| Number of Positions: | 12 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.200" (5.08mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Detent Lock |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.150" (3.81mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.568" (14.43mm) |
| Contact Shape: | Rectangular |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 78.7µin (2.00µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Thermoplastic, Polyester, Glass Filled |
| Features: | Board Lock |
| Operating Temperature: | -55°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | 250V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 15 | ||
| 105 | ||
| 510 | ||
| 1005 | ||
| 5010 |
Current price of 178306-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 36POS 2.54MM

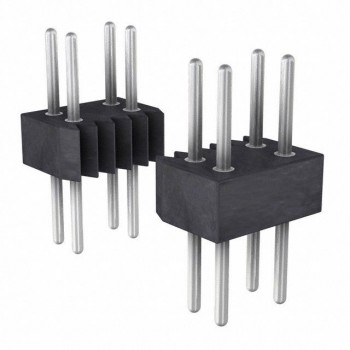

CONN HEADER VERT 84POS 1.27MM
