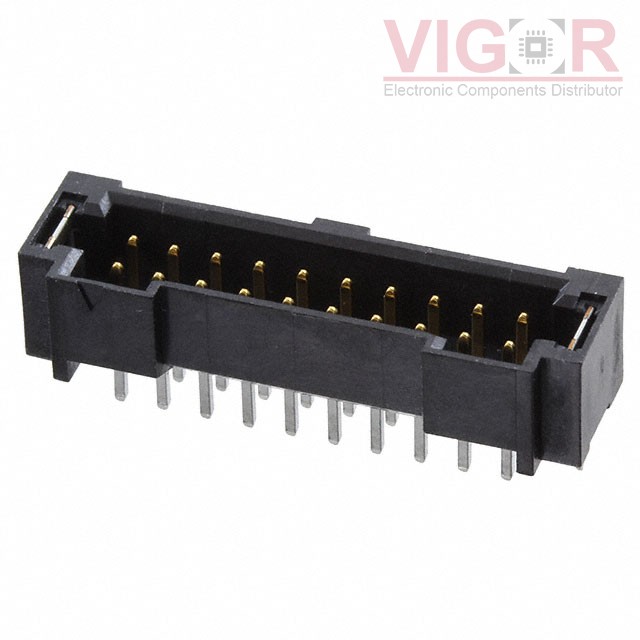

T2M-110-01-L-D-TH-WT

Part No :: T2M-110-01-L-D-TH-WT

Manufacturer: Samtec, Inc.

VIGOR # :: 3099673

Description: CONN HEADER VERT 20POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: T2M-110-01-L-D-TH-WT PDF

Country of origin: -

Date code: -

T2M-110-01-L-D-TH-WT Specifications

Type	Description
Series:	Tiger Eye™ T2M
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.117" (2.97mm)
Overall Contact Length:	0.302" (7.67mm)
Insulation Height:	0.228" (5.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	3.8A
Voltage Rating:	-
