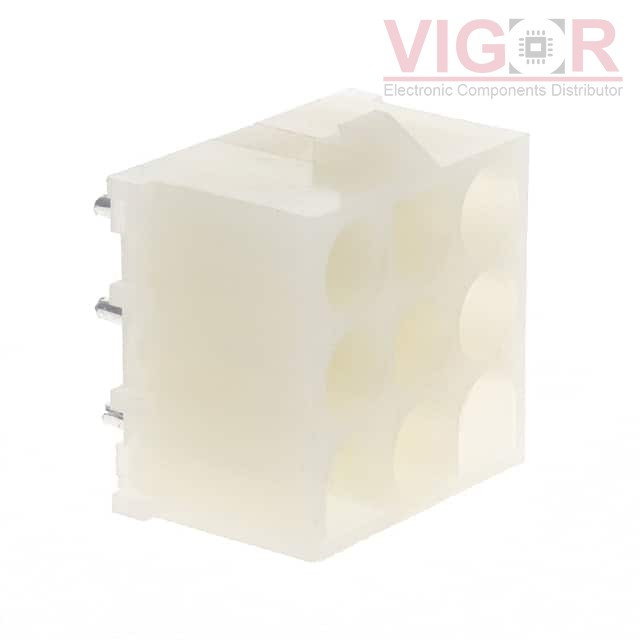

DME-09-S2-P-SQ

Part No :: DME-09-S2-P-SQ

Manufacturer: Adam Tech

Description: PCB MOUNT PIN HEADER (W/ POLARIZ

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DME-09-S2-P-SQ PDF

Availability: 500 pieces

Unit Price: ~~$1.30000~~

Current price of DME-09-S2-P-SQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DME-09-S2-P-SQ Specifications

Type	Description
Series:	DME
Package:	Bag
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.250" (6.35mm)
Number of Positions:	9
Number of Rows:	3
Row Spacing - Mating:	0.250" (6.35mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.157" (4.00mm)
Overall Contact Length:	-
Insulation Height:	0.581" (14.76mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	Board Guide
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	9A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
