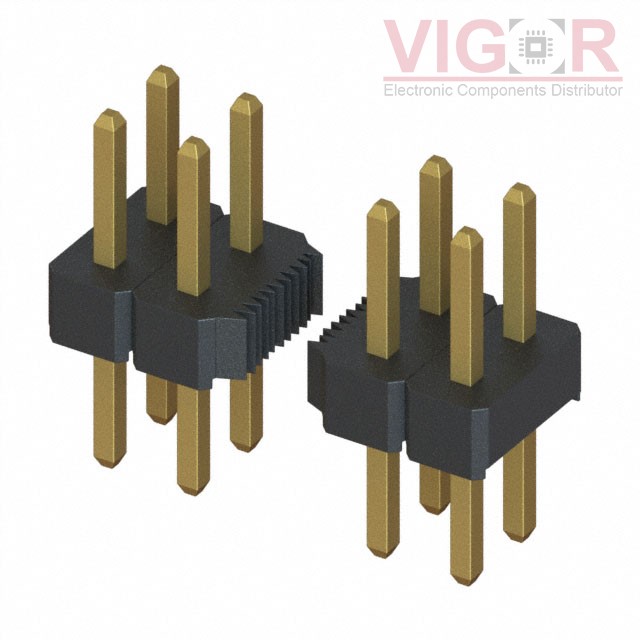

M22-2020605

Product image
Product thumb
Part No :

M22-2020605

Manufacturer
Harwin
VIGOR # :

3100938

Description
CONN HEADER VERT 12POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
M22-2020605 PDF
Country of origin
-
Date code
-
ads
M22-2020605 Specifications
Type Description
Series:M22
Package:Bulk
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.138" (3.50mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:0.331" (8.40mm)
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 115
Shipped from
HK warehouse
Expected Shipping Date
Oct 20 - Oct 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.7400 $0.74
10 $0.6910 $6.91
100 $0.5298 $52.98
500 $0.4607 $230.34
1000 $0.3801 $380.06
5000 $0.3340 $1 669.95
10000 $0.3110 $3 109.60

Current price of M22-2020605 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
5055680271

5055680271

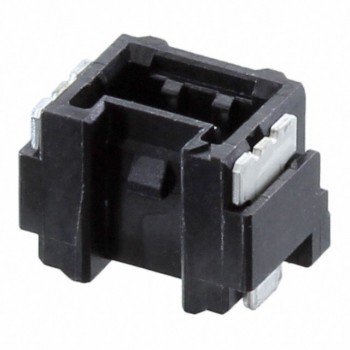

CONN HEADER SMD 2POS 1.25MM

67997-610

67997-610

CONN HEADER VERT 10POS 2.54MM

EHT-105-01-SM-D-SM-LC

EHT-105-01-SM-D-SM-LC

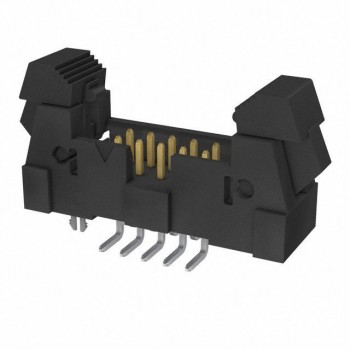

CONN HEADER SMD 10POS 2MM
