LHD-07-TS-V0

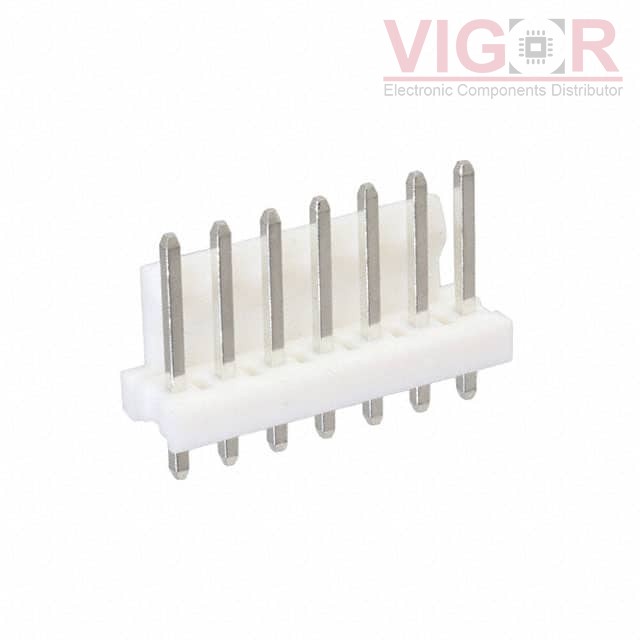

Image is for reference,
please contact us to get the real picture

Part No :: LHD-07-TS-V0

Manufacturer: Adam Tech

Description: CONN HEADER VERT 7POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: LHD-07-TS-V0 PDF

Availability: 1781 pieces

Unit Price: ~~$0.24000~~

Current price of LHD-07-TS-V0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LHD-07-TS-V0 Specifications

Type	Description
Series:	LHD
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	7
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.449" (11.40mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	-
Insulation Height:	0.125" (3.18mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	White
Current Rating (Amps):	7A
Voltage Rating:	-
