1734595-5

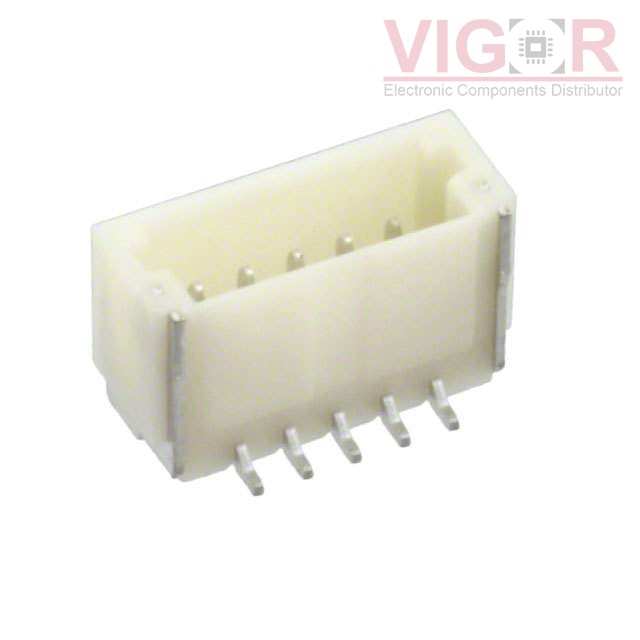

Product image
Product thumb
Part No :

1734595-5

Manufacturer
VIGOR # :

3101307

Description
CONN HEADER SMD 5POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1734595-5 PDF
Country of origin
-
Date code
-
ads
1734595-5 Specifications
Type Description
Series:High Performance Interconnect (HPI)
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:-
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.169" (4.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:120.0µin (3.05µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA9T), Nylon 9T
Features:Pick and Place, Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Ivory
Current Rating (Amps):1A
Voltage Rating:50V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 6794
Shipped from
HK warehouse
Expected Shipping Date
Mar 31 - Apr 04 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.4000 $1.40
1000 $0.7626 $762.61
2000 $0.7150 $1 429.90
3000 $0.6911 $2 073.33
5000 $0.6673 $3 336.40
10000 $0.6339 $6 339.20

Current price of 1734595-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
