207544-8

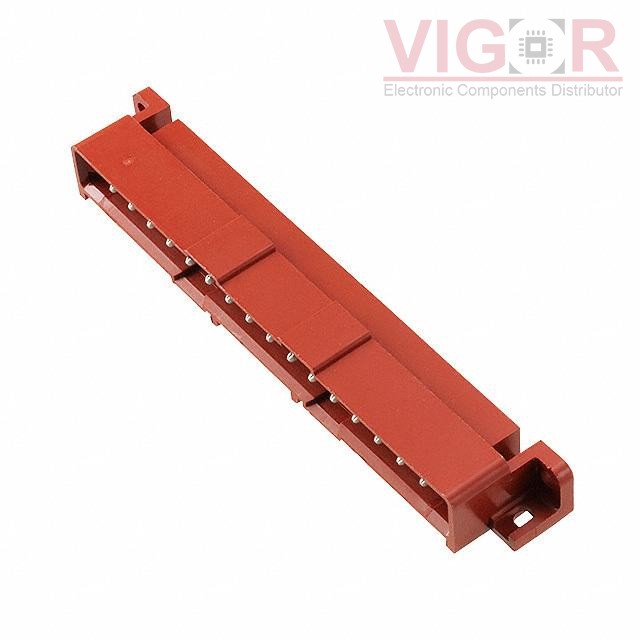

Image is for reference,
please contact us to get the real picture

Part No :: 207544-8

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 16POS 5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 207544-8 PDF

Availability: 0 pieces

Unit Price: ~~$10.46448~~

Current price of 207544-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

207544-8 Specifications

Type	Description
Series:	Metrimate
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	16
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.192" (4.88mm)
Overall Contact Length:	-
Insulation Height:	0.500" (12.70mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	150.0µin (3.81µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 130°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Red
Current Rating (Amps):	7.5A
Voltage Rating:	600V
