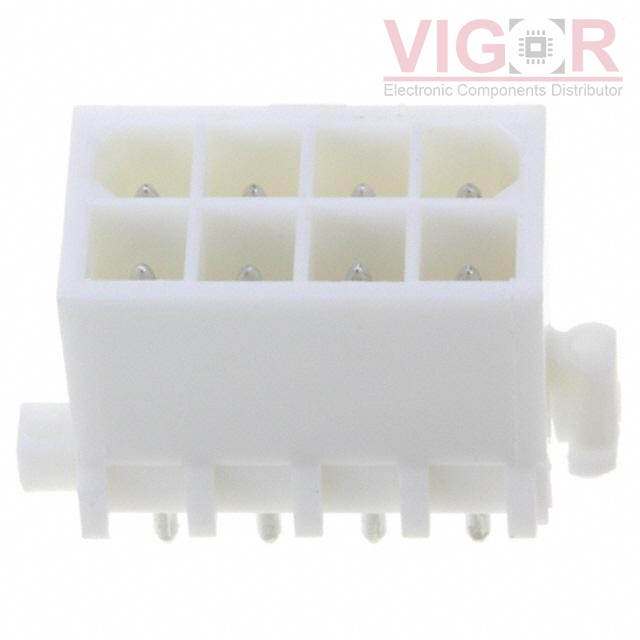

794065-1

Part No :: 794065-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 8POS 4.14MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 794065-1 PDF

Availability: 177 pieces

Current price of 794065-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

794065-1 Specifications

Type	Description
Series:	Mini-Universal MATE-N-LOK
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.163" (4.14mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.163" (4.14mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.175" (4.45mm)
Overall Contact Length:	-
Insulation Height:	0.531" (13.50mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	150.0µin (3.81µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Lock
Operating Temperature:	-20°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	White
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	600VAC

Please confirm the specifications of the products when ordering.
