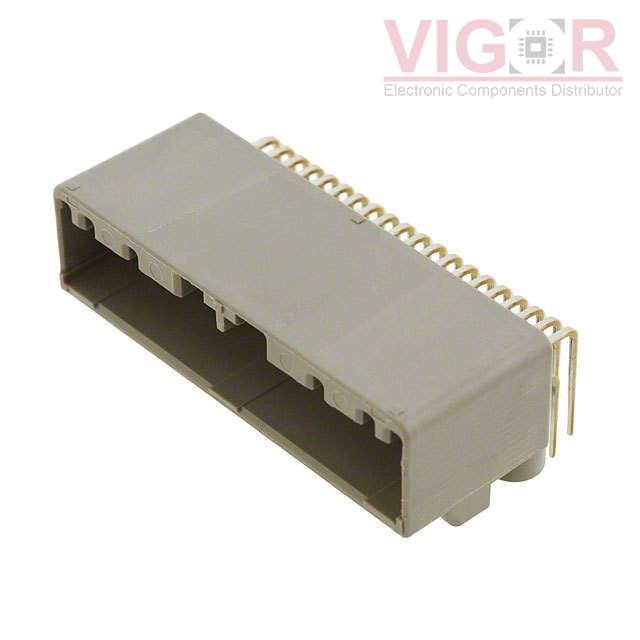

MX34040NF2

Part No :: MX34040NF2

Manufacturer: JAE Electronics

Description: CONN HEADER R/A 40POS 2.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MX34040NF2 PDF

Availability: 826 pieces

Current price of MX34040NF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MX34040NF2 Specifications

Type	Description
Series:	MX34
Package:	Box
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.087" (2.20mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.303" (7.70mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.626" (15.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Mounting Flange
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	3A
Voltage Rating:	-
