| Type | Description |
|---|---|
| Series: | TMM |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 4 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.146" (3.71mm) |
| Contact Length - Post: | 0.118" (3.00mm) |
| Overall Contact Length: | 0.323" (8.20mm) |
| Insulation Height: | 0.059" (1.50mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | - |
| Insulation Color: | Black |
| Current Rating (Amps): | 3.2A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 | ||
| 5000 | ||
| 10000 |
Current price of TMM-104-02-L-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER R/A 53POS 2.54MM
CONN HEADER SMD 24POS 2.54MM

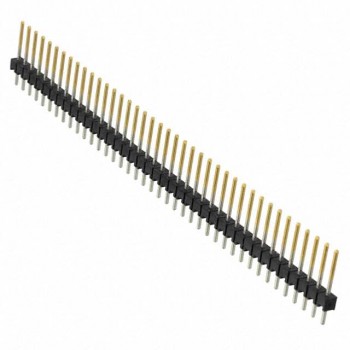

CONN HEADER VERT 40POS 2.54MM
