2-1871935-5

Part No :: 2-1871935-5

Manufacturer: TE Connectivity AMP Connectors

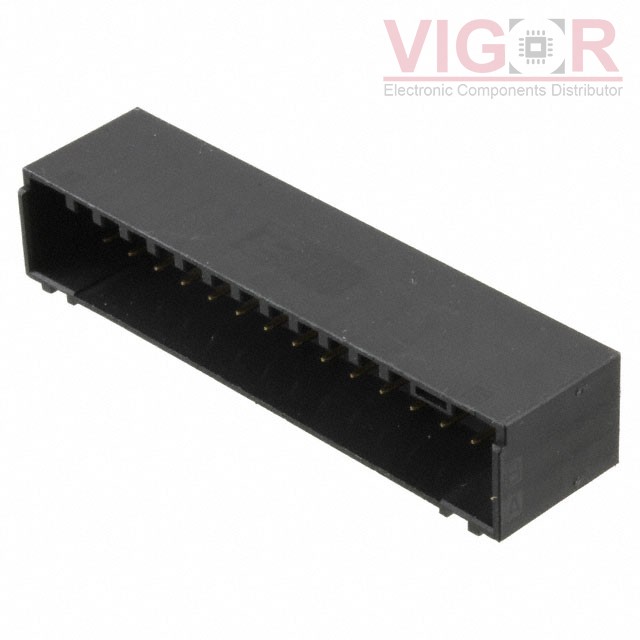

Description: CONN HEADER R/A 30POS 3.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-1871935-5 PDF

Availability: 0 pieces

Current price of 2-1871935-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-1871935-5 Specifications

Type	Description
Series:	Dynamic D-1900
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.138" (3.50mm)
Number of Positions:	30
Number of Rows:	2
Row Spacing - Mating:	0.130" (3.30mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.465" (11.80mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	12.0µin (0.30µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	4A
Voltage Rating:	150V
