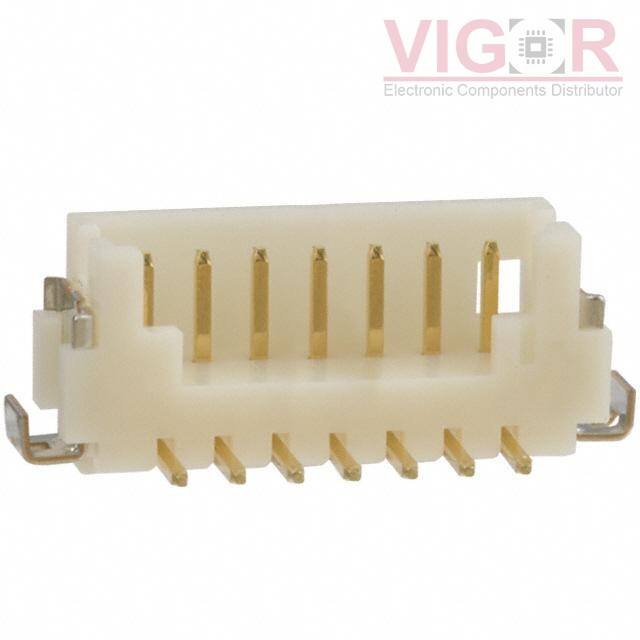

DF13C-7P-1.25V(50)

Part No :: DF13C-7P-1.25V(50)

Manufacturer: Hirose

VIGOR # :: 4627653

Description: CONN HEADER SMD 7POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF13C-7P-1.25V(50) PDF

Country of origin: -

Date code: -

DF13C-7P-1.25V(50) Specifications

Type	Description
Series:	DF13
Package:	Tube
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	7
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.189" (4.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A
Voltage Rating:	150V
