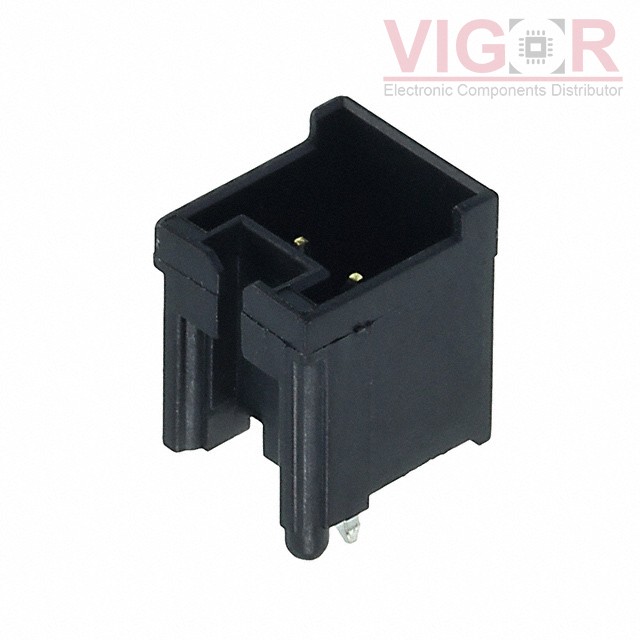

| Type | Description |
|---|---|
| Series: | Signal Double Lock |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.098" (2.50mm) |
| Number of Positions: | 2 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Latch Holder |
| Contact Length - Mating: | 0.185" (4.70mm) |
| Contact Length - Post: | 0.126" (3.20mm) |
| Overall Contact Length: | 0.410" (10.41mm) |
| Insulation Height: | 0.386" (9.80mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features: | Board Guide |
| Operating Temperature: | -30°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 3A |
| Voltage Rating: | 50V |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 917780-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

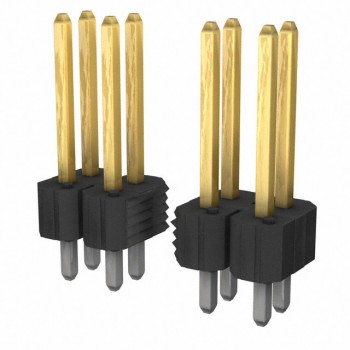

CONN HEADER VERT 68POS 2.54MM

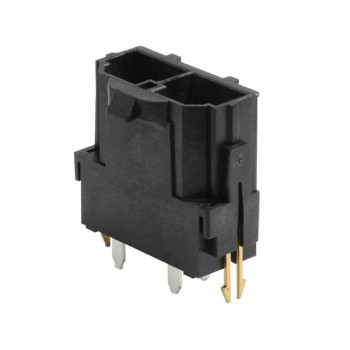

CONN HEADER VERT 2POS 10MM

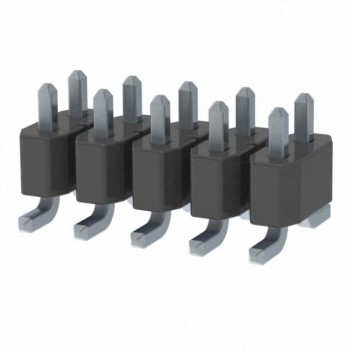

CONN HEADER SMD 10POS 2.54MM
