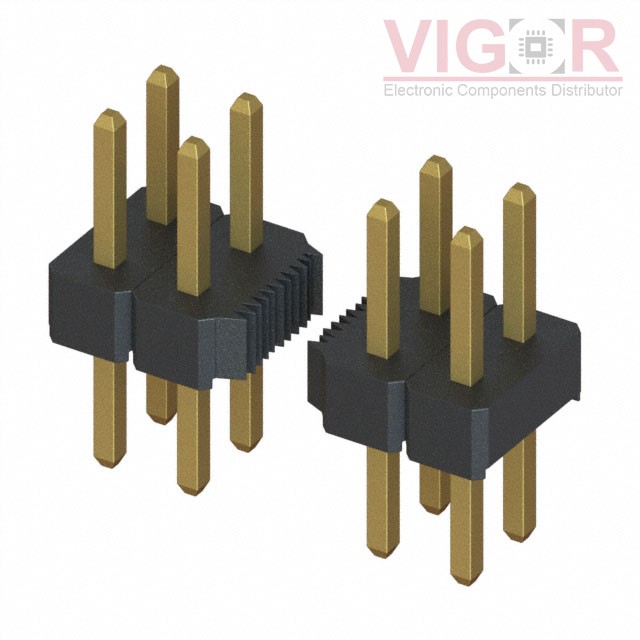

| Type | Description |
|---|---|
| Series: | M22 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header, Cuttable |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 42 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.138" (3.50mm) |
| Contact Length - Post: | 0.134" (3.40mm) |
| Overall Contact Length: | 0.331" (8.40mm) |
| Insulation Height: | 0.059" (1.50mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyamide (PA6T), Nylon 6T |
| Features: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of M22-2022105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
