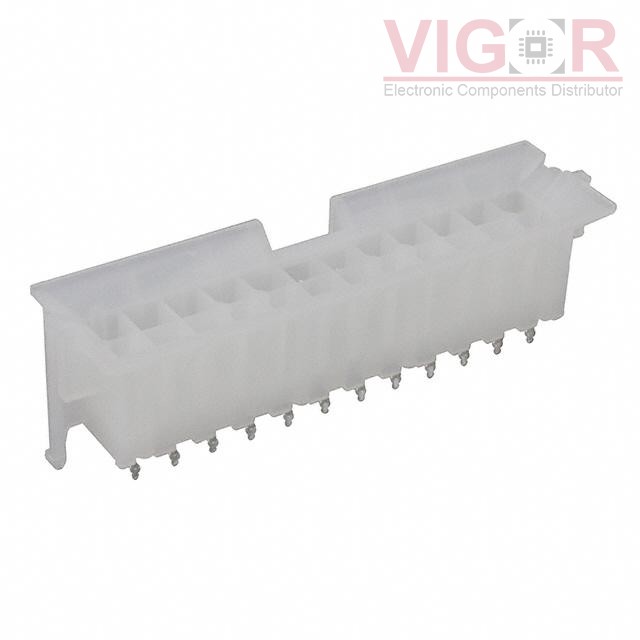

| Type | Description |
|---|---|
| Series: | Mini-Fit BMI 42440 |
| Package: | Tray |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.165" (4.20mm) |
| Number of Positions: | 24 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.165" (4.20mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Latch Holder |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.138" (3.50mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.555" (14.10mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Features: | Board Lock |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | - |
| Insulation Color: | Natural |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0015246246 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
