69152-436HLF

69152-436HLF

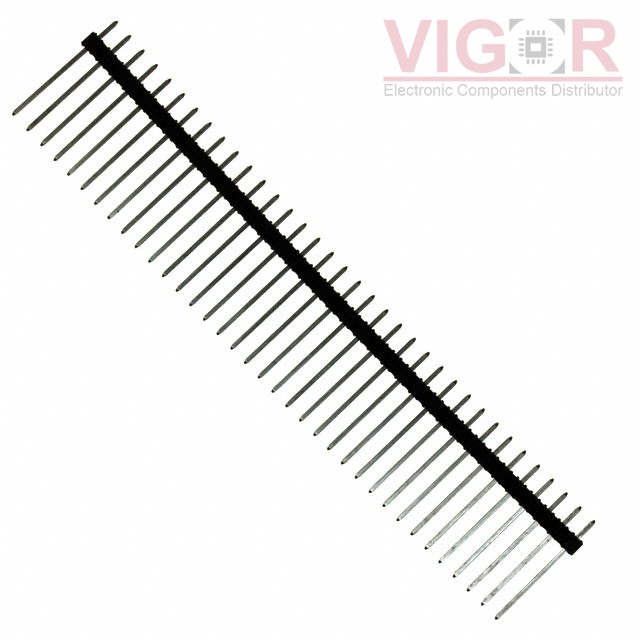

Image is for reference,
please contact us to get the real picture

Part No :

69152-436HLF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER VERT 36POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 29 - Nov 02 2025
DataSheet
69152-436HLF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 69152-436HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

69152-436HLF Specifications
Type Description
Series:BERGSTIK® II
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.500" (12.70mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.720" (18.29mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:-
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
