1-828590-4

1-828590-4

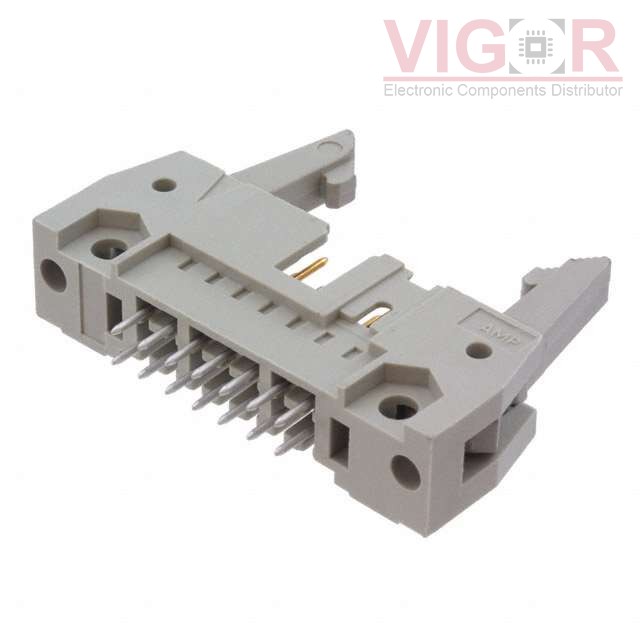

Image is for reference,
please contact us to get the real picture

Part No :

1-828590-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 14POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
DataSheet
1-828590-4 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 1-828590-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-828590-4 Specifications
Type Description
Series:AMP-Latch
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.246" (6.25mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.652" (16.56mm)
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:31.5µin (0.80µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MMT-103-01-H-DH

MMT-103-01-H-DH

CONN HEADER SMD R/A 6POS 2MM
HOT FTSH-147-02-F-MT-TR

FTSH-147-02-F-MT-TR

CONN HEADER SMD R/A 94POS 1.27MM
HOT HTSW-119-08-TM-D-LA-008

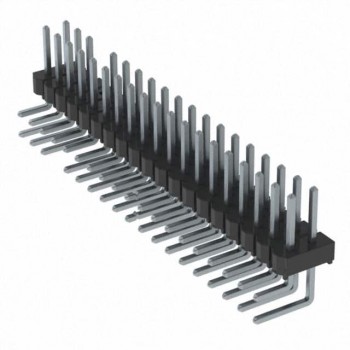

HTSW-119-08-TM-D-LA-008
