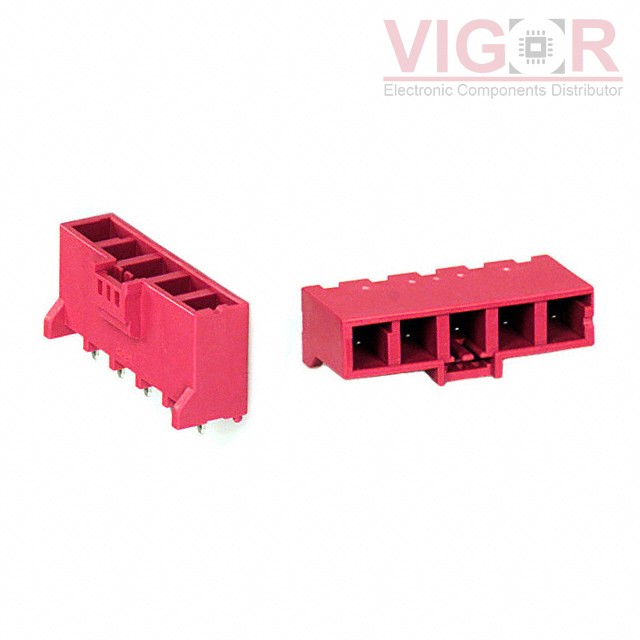

DF22L-5P-7.92DSA

Part No :: DF22L-5P-7.92DSA

Manufacturer: Hirose

VIGOR # :: 4637437

Description: CONN HEADER VERT 5POS 7.92MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF22L-5P-7.92DSA PDF

Country of origin: -

Date code: -

DF22L-5P-7.92DSA Specifications

Type	Description
Series:	EnerBee™ DF22
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.312" (7.92mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.354" (9.00mm)
Contact Length - Post:	0.146" (3.70mm)
Overall Contact Length:	-
Insulation Height:	0.713" (18.10mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Red
Current Rating (Amps):	22A
Voltage Rating:	1000V
