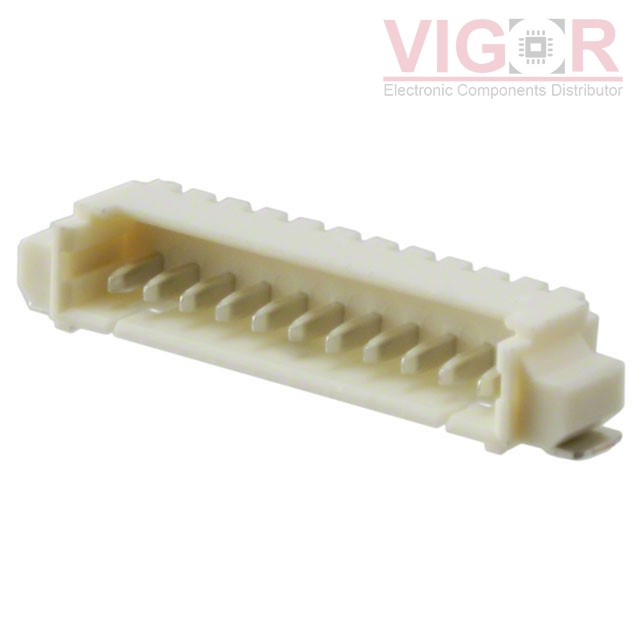

Product image
Product thumb
Part No :

0532611190

Manufacturer
Woodhead - Molex
VIGOR # :

4638174

Description
CONN HEADER SMD R/A 11POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0532611190 PDF
Country of origin
-
Date code
-
ads
0532611190 Specifications
Type Description
Series:PicoBlade 53261
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:11
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.134" (3.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Oct 20 - Oct 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of 0532611190 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

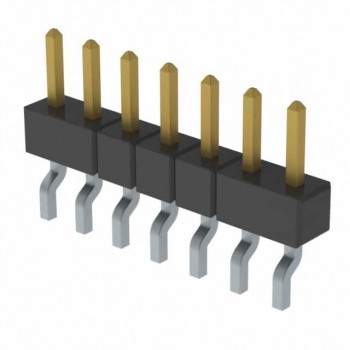

MMT-107-01-SM-SH-P

MMT-107-01-SM-SH-P

CONN HEADER SMD R/A 7POS 2MM

A3B-30PA-2DSA(71)

A3B-30PA-2DSA(71)

CONN HEADER VERT 30POS 2MM

BKT-127-01-F-V-A

BKT-127-01-F-V-A

CONN HEADER SMD 27POS 1MM

Recently Viewed

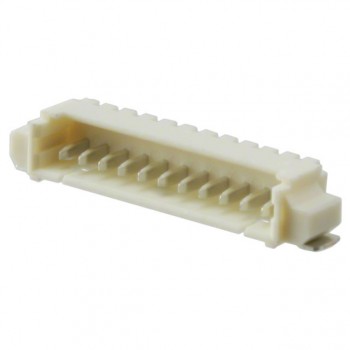

0532611190
