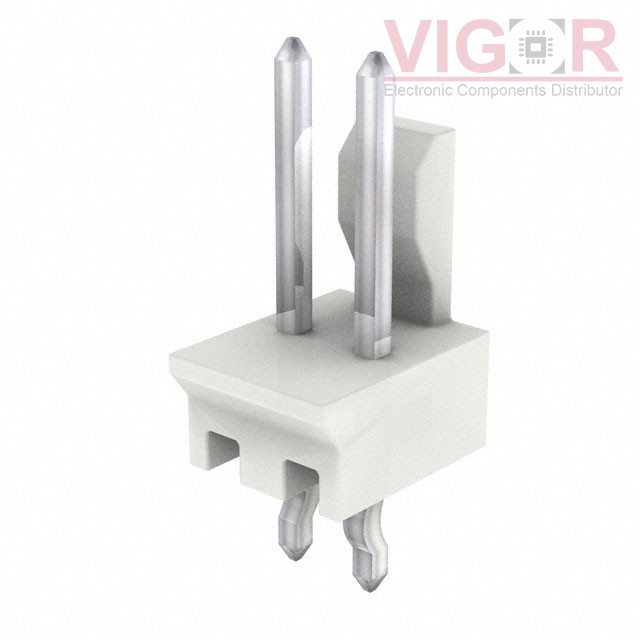

| Type | Description |
|---|---|
| Series: | KK254, 43009 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 2 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 1 Wall |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Friction Lock |
| Contact Length - Mating: | 0.295" (7.49mm) |
| Contact Length - Post: | 0.140" (3.56mm) |
| Overall Contact Length: | 0.560" (14.22mm) |
| Insulation Height: | 0.322" (8.18mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyester, Glass Filled |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Natural |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0022235021 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER SMD 86POS 1.27MM

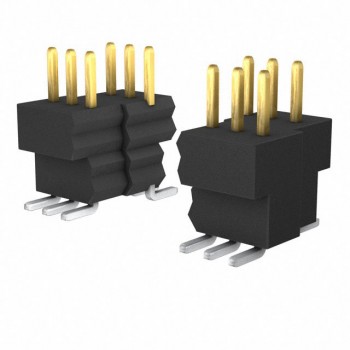

CONN HEADER SMD 59POS 1MM

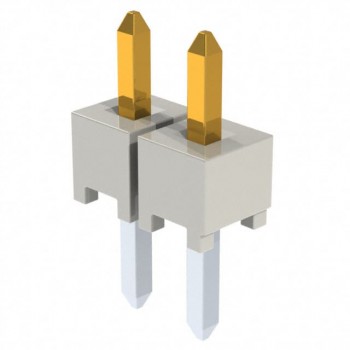

CONN HEADER VERT 2POS 2.54MM
