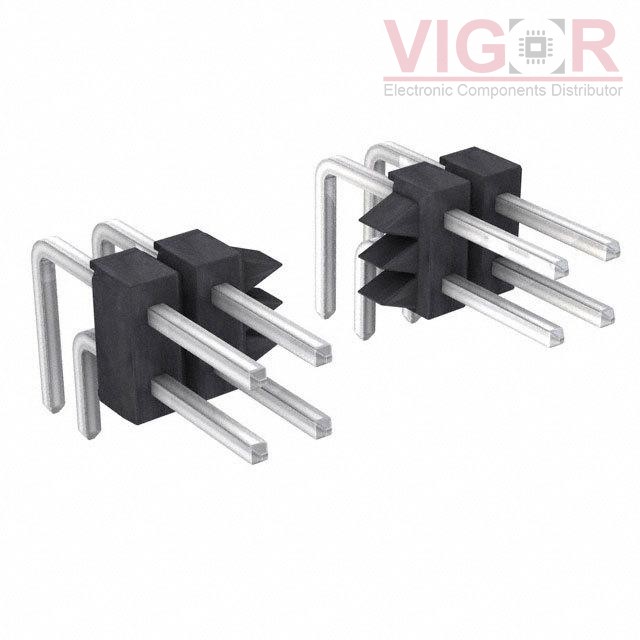

M20-9742846

Product image
Product thumb
Part No :

M20-9742846

Manufacturer
Harwin
VIGOR # :

4641739

Description
CONN HEADER R/A 56POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
M20-9742846 PDF
Country of origin
-
Date code
-
ads
M20-9742846 Specifications
Type Description
Series:M20
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:56
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.228" (5.80mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.200" (5.08mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A per Contact
Voltage Rating:-
